Architecture Supplies
Cooler/Freezer Doors
Supplied by
About

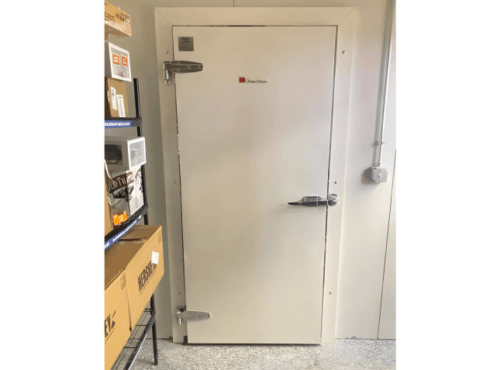

- Chase ColdGuard cooler and freezer doors in swing, Gen II sliding and vertical lift configurations, built on a thermally neutral fiberglass reinforced pultrusion (FRP) framework with extruded plastic polymer casings and a non-CFC foamed-in-place polyurethane core, in 4" and 6" panel thicknesses. Freezer applications add heated frames or perimeter heaters, and a safety release on the inside face opens the door from within even when latched outside.
Application
Installed on walk-in coolers and freezers in hotels, hospitals, supermarkets and food production. The vertical lift version suits openings with little side room or several doors close together, as on a loading dock. The frame heater is what keeps a freezer door serviceable: without it the gasket freezes to the frame, staff force the door, the seal tears within the first season, and the room never holds temperature again.
Standards & Reference 5 cited
NSF/ANSI 7
Commercial refrigerators and freezers: the hygiene and construction requirements for cold storage in food service.
NSF/ANSI 2
Materials and design requirements for food equipment: surfaces that must be cleanable in a commercial kitchen or food plant.
UL 1995
Safety requirements for heating and cooling equipment as a complete assembly.
ASTM C518
Steady-state thermal transmission by heat flow meter, which is where an insulation's declared R-value or U-value comes from.
Also citedASHRAE 90.1 refrigerated envelope
