Fire Protection expansion

Fire Protection expansion & surge tanks
Fire Protection expansion

Supplied by

  • Amtrol

About

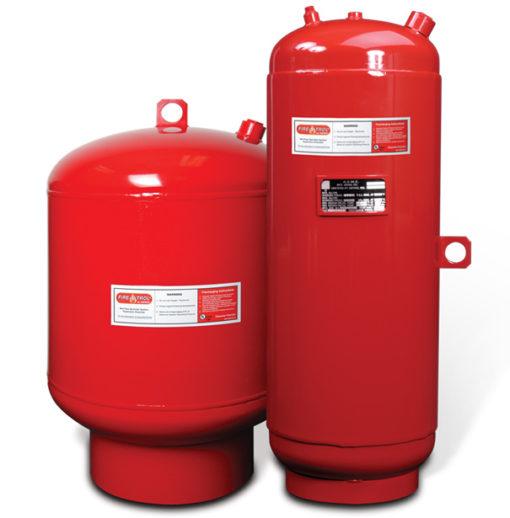

  • Fire Protection expansion & surge tanks: ire-X-Trol ASME expansion tanks prevent damage to fire protection systems by accommodating the expanded volume of system fluids that result from temperature changes. This keeps the system pressure below the pressure limitations of the components. Fire-X-Trol can be used with water, glycerin and propylene glycol systems.

Application

Fitted on wet sprinkler systems and particularly on dry and antifreeze systems in unheated spaces, where a sealed pipe network has nowhere to expand when ambient temperature rises. Fire-X-Trol is supplied from 1.5 to 90 gallons and built to ASME Section VIII, Division 1, and works with water, glycerin and propylene glycol. Without a tank the trapped volume lifts pressure until a fitting or a gauge fails, which shows up as an unexplained leak in a system that has never once operated.

Standards & Reference 5 cited

  • ASME BPVC Section VIII Div. 1

    The American rules for constructing pressure vessels: what an expansion tank or similar vessel is designed and stamped to.

  • UL Listed

    Tested by UL against the applicable safety standard and listed for the use it is sold for.

Also citedNFPA 13NFPA 25FM Approved
