Electrical Supplies
Basic Energy Meters
Supplied by
About

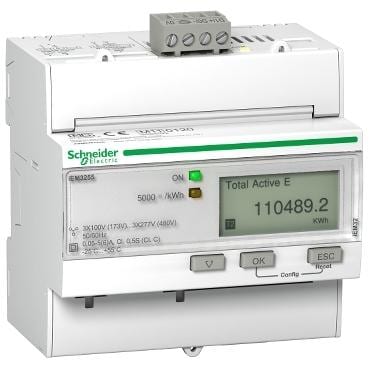

- Schneider iEM and PowerLogic PM2000 / EasyLogic series DIN-rail kWh meters for sub-billing and consumption monitoring on single- and three-phase circuits. Direct-connected or CT-operated versions provide a pulse output or Modbus link so consumption can be logged by tenant, floor or plant item.
Application
Installed in tenant distribution boards, landlord panels and plant room feeders where consumption has to be split between parties or tracked per system. The pulse or Modbus output feeds a BMS or energy management platform, making them the first step in an ISO 50001 measurement plan without the cost of full multifunction metering at every point.
Standards & Reference 6 cited
IEC 62052-11
The general requirements, tests and test conditions for electricity metering equipment: the base standard every meter type builds on.
IEC 62053-21
Static meters for active energy at accuracy classes 1 and 2: the general-purpose billing and sub-metering accuracy.
IEC 62053-23
Static meters for reactive energy: the counterpart to 62053-21 where power factor has to be measured and billed.
EN 50470-1
General requirements for electricity metering equipment intended for regulated, billable use in Europe.
EN 50470-3
Static meters for active energy in the European regulated series, at accuracy classes A, B and C.
MID 2014/32/EU
The EU Measuring Instruments Directive: what allows a meter to be used for a billed transaction rather than indication only.
Request for quotation
Get a price for this item
Send the quantity and the project. Our sales engineers reply with a quotation, usually within one working day.
