Electrical Supplies
Soft starters
Supplied by
About

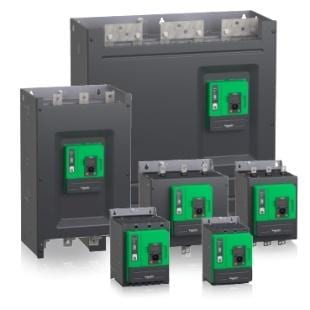

- Schneider Altivar soft starters, ATS01 for simple machines from 0.37 kW to 15 kW, with Altistart ATS22 and ATS480 covering larger duties. They ramp voltage on start and stop, reducing mechanical stress and extending the life of the driven machine, and a bypass contactor takes over once the motor is at speed to eliminate thyristor losses.
Application
Used on fixed-speed motors where the problem is the start, not the running speed: conveyors, pumps that would otherwise water-hammer the pipework, compressors, automatic doors and gates, and sites where an inrush of six to eight times full load current would dip the incoming supply. If the process actually needs variable flow rather than a gentle start, a soft starter is the wrong device and a drive is the right one.
Standards & Reference 5 cited
IEC/EN 60947-4-2
AC semiconductor motor controllers and starters: the part that covers soft starters, as distinct from the electromechanical starters in 60947-4-1.
IEC 60529
The IP code. Two digits stating how well an enclosure keeps out solid objects and water, IP65 and the like. The number a specifier reads first when equipment sits outdoors or in a plant room.
Also citedIEC 60947-1IEC 61000-6-2IEC 61000-6-4
Request for quotation
Get a price for this item
Send the quantity and the project. Our sales engineers reply with a quotation, usually within one working day.
