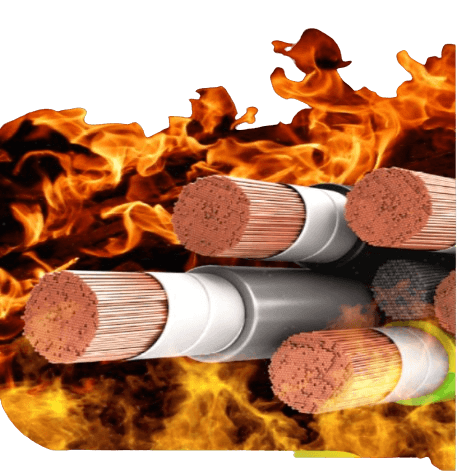

Fire Resistance Cables LSZH 950C V

• BS 6387 C-W-Z (950 °C for 3 hrs)A cable that has passed all three BS 6387 tests: it maintained its circuit through direct flame, through flame with water spray, and through flame with mechanical shock. The grade specified for life-safety circuits.

  A cable that has passed all three BS 6387 tests: it maintained its circuit through direct flame, through flame with water spray, and through flame with mechanical shock. The grade specified for life-safety circuits.

• BS 8434-2The enhanced fire survival test for small cables in alarm systems, used where BS 5839-1 calls for enhanced grade.

  The enhanced fire survival test for small cables in alarm systems, used where BS 5839-1 calls for enhanced grade.

• EN 50200Fire resistance of the small cables used in emergency circuits: alarm, detection and evacuation wiring, tested for circuit survival rather than flame spread.

  Fire resistance of the small cables used in emergency circuits: alarm, detection and evacuation wiring, tested for circuit survival rather than flame spread.

• BS 5839-1The British code of practice for fire detection and alarm systems in non-domestic buildings: what decides which cable grade a circuit needs.

  The British code of practice for fire detection and alarm systems in non-domestic buildings: what decides which cable grade a circuit needs.

• IEC 60331-21Circuit integrity under fire: whether a cable keeps carrying current while it burns. This is the property that separates a fire-resistant cable from a merely flame-retardant one.

  Circuit integrity under fire: whether a cable keeps carrying current while it burns. This is the property that separates a fire-resistant cable from a merely flame-retardant one.

• IEC 60332-1Flame propagation on a single vertical cable. It shows the cable will not carry a fire along its own length, which is the minimum expected of any cable in an occupied building.

  Flame propagation on a single vertical cable. It shows the cable will not carry a fire along its own length, which is the minimum expected of any cable in an occupied building.

• IEC 60332-3-24Flame spread on a bundle of cables in a vertical tray, Category C. A cable can pass the single-cable test and still spread fire when hundreds are bunched in a riser, which is what this addresses.

  Flame spread on a bundle of cables in a vertical tray, Category C. A cable can pass the single-cable test and still spread fire when hundreds are bunched in a riser, which is what this addresses.

• IEC 61034Smoke density from a burning cable, measured in a sealed chamber. Low smoke is an evacuation requirement: people leave a building by sight.

  Smoke density from a burning cable, measured in a sealed chamber. Low smoke is an evacuation requirement: people leave a building by sight.

• IEC 60754-1How much halogen acid gas the cable gives off when it burns. Halogen-free matters where people or sensitive equipment share the space with the cable.

  How much halogen acid gas the cable gives off when it burns. Halogen-free matters where people or sensitive equipment share the space with the cable.

• IEC 60754-2The acidity and conductivity of the gases a burning cable produces: in effect, how corrosive the smoke is to the building and its equipment.

  The acidity and conductivity of the gases a burning cable produces: in effect, how corrosive the smoke is to the building and its equipment.

• BASECIndependent British cable approval: verification that a cable is made to the standard its printing claims.

  Independent British cable approval: verification that a cable is made to the standard its printing claims.

• LPCB CertifiedThird-party certification by the Loss Prevention Certification Board, whose Red Book listing is widely called for on life-safety products in the Gulf.

  Third-party certification by the Loss Prevention Certification Board, whose Red Book listing is widely called for on life-safety products in the Gulf.

• RoHS & REACHMade within both the EU restrictions on hazardous substances in electrical equipment and the wider EU chemical registration and authorisation regime.

  Made within both the EU restrictions on hazardous substances in electrical equipment and the wider EU chemical registration and authorisation regime.

Also citedBS 7629-1:2015
